In this section you will find a selection of our projects, with photographs and descriptions.
You can search by selecting one or more of the following criteria: geographical macro area, typology of project, geographical area (state, region or province).
MACRO AREA
- Italy
- Foreign countries
TYPOLOGY
- Major projects
- Marina and mooring points
- River and lake landings
- Floating piers
- Floating breakwaters
- Floating platforms
- Fixed piers and docks
- Floating bridges
- Water sport centres
- Slipways
- Special structures
- Plant
AREA
- Italy
- Foreign countries
9no. reinforced steel frame pontoons with concrete floaters, completed with access gangway and mooring system.
Floating landing composed of a fixed balcony, hinged gangway and floating pontoon anchored with piles. The supply includes pile guide devices, safty ladder and parapet.
Landing for the development of sustainable tourism, composed of a floating landing with dimensions 15x4m and a 13m long access gangway.
More than 14000m2 of all concrete floating pontoons, fingers, platforms. Prestigious marina with up to 6m wide pontoons and up to 60m long fingers, berths for up to 130m long vessels.
Floating and fixed landing for leisure boats, with length from 6m up to 12m, including access system with portal and service bollards.
2.5m wide floating pedestrian access to Marghera Fort near Venice. Parapets are equipped with handrail and stainless steel net for safety of the users.
Floating pontoons and fingers sheltered by 12x3m brakwaters, anchored with piles, for local police mooring.
Reinforced hot dip galvanised steel pontoons and aluminium access gangways with shaped ground plate.
Supply and installation of 6no. floating breakwaters with dim. 20x6m (freeboard 0.8m) and 1no. floating pier 20x6m for the relaunching of the tourist and commercial activity of Cala Balbiano harbour. The connection of the floating modules is through various types of walkways with portal.
Two piers for total length of 108m, composed of floating pontoons in hot di galvianised and painted steel, the landing is completed by 2no. access gangways.
Construction and installation of a new fixed pier, refurbishment of floating pontoons and installation of new anchoring system for the external piers
Very robust and stable foating landing 12x4.2m with 90cm freeboard, equipped with mooring blisters anchored with piles, near Calatrava Bridge.
Floating crossing for temporary connection of Venice with the cimitery of San Michele, in occasion of All Saints event. Length 400m, width 10m. The same, relocated, was part of the circuit during the 37th Venice Marathon.
Small harbour for ricreative boats, composed of 3m wide floating pontoons and 10m long fingers; in addition a side mooring pontoon together with berths for jet-ski complete the supply.
Supply and installation of 380m floating service pontoons made with aluminium frame and FSC tropical hardwood decking, supported by concrete floaters. Pontoons are anchored with vertical beams to the quay.
Special floating pontoon with side wooden cover, equipped with landing gangway hinged to the pontoon.

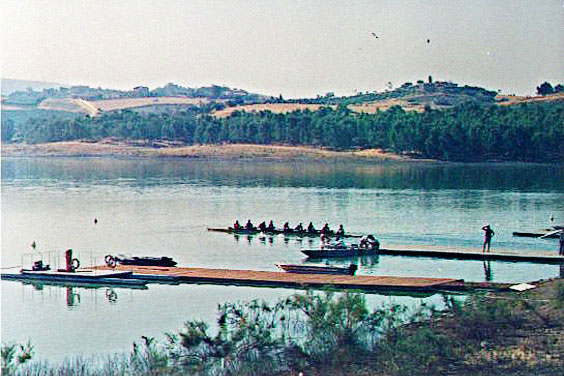

Rowing pontoon (30cm freeboard) anchored with vertical beams to the quay, and accessible through a floating gangway laying/rolling on a concrete slipway.
50m floating breakwater 4m wide, having the aim of berthing small-medium boats and sheltering them from the wave action generated by manouvring ships in the port.
Supply and installation of floating landing for Coastguard vessels, anchored with piles, equipped with floating access system.
6m wide floating breakwaters for fishery dhow and skiff boats mooring. The landing is accessible thanks to 22m long gangways, designed to bear 500kg/m2.
2018 - King size 3m wide floating pier with floating access gangway and accessories for the new marina.
2019 - New 3m wide 96m long floating pier for boat mooring.

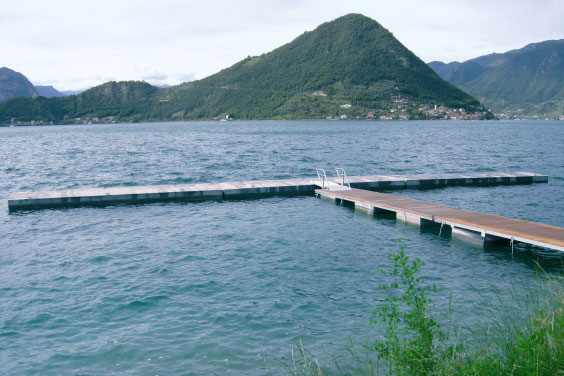

T shape floatin pier for turistic and sports boats
240sqm sunbathing floating platform with swimmingpool and floating connection to the beach of a private lake
River floating platform 12x3m with glass panel parapets for leisure and relax
57m long fixed pier supported by driven piles, composed of a 2.5m wide robust hot dip galvanised and painted steel frame with FRP grating panel deck .
Landing for 24m long boats: robust floating pontoons anchored to the quay with vertical beams and access system composed of balcony and gangaway.
2.5m wide floating pontoon anchored with chains and concrete blocks, with 5m long access gangway.
45m of 2.5m wide floating pontoons and 5m long access gangway, for boats up to 15m.
Special 75m freeboard floating pontoon, equipped with mooring blisters and floating gangway with parapeths.
New harbour shelterd by 240m + 180m of monolotic elements of floating breakwaters with dimension 20x8m (150t) and 20x10m (180t). Inside, 1200m of all concrete floating pontoons, 2.4m wide, with tropical hardwood decking, are installed for boat berthing of local nautical centers.
Marina able to accommodate 562 boats from 7.5 to 40m in length. Layout consisting of two floating piers made of monolithic concrete elements 5m wide and discontinuous floating elements 2.5m wide with steel frame and tropical wooden decking for a total development of 850m.
Supply of 240m of all concrete floating pontoons. Elements of dimensions 20x4m with displacement of 40tons.
Protection of a floating harbour with 600m of floating breakwater for ACTV (Venetian public waterbuses). New modules of dimensions 20x3m, 2.05m high and 75cm freeboard.
2017 - Supply of floating pontoons 3m wide for the new 270 berths from 10m up to 28m long foresee in the new marina.
2018 - Additional 180m of floating pontoons along the rocky quay, anchored with rods.
Supply of reinforced floating pontoons 2.35m wide made of steel, concrete and wood. The piers, located in the gulf of Sant'Amanza are managed by Port of Bonifacio
King size floating pier 3m wide, with a special access gangway structure, for fire fighting motor vessels of Port of Genoa
1no. 20x3m and 2no. 20x4m floating breakwaters anchored with piles and dampening pile guides for sheltering of the nautical center. 2no. 12m long
fingers optimise additional berths.
Supply of 43 all cocncrete floating pontoons of dimensions 12x3m with WPC (Wood Palstic Composite) decking to complete the Santiago Calatrava project for berths up to 36m long,The marina todayhas nearly 1000 berths over a surface area of about 340.000sm.
King size floating pontoons 3m wide at the shipyard of Gruppo Antonini SpA
Fixed structure and floating elements with differents freeboard for watertaxi and turistic vessels
Supply of a floating breakwater pier 72m long in elements of dim.12x3m and two floating piers 60m longs in all-concrete elements of dimension 12x2.5m
Supply of 4no. floating piers for 180 new berths. The floating pontoons are anchored by chains and concrtere blocks and the boats are moored by med mooring system
Flaoting basin for Mega Yachts obtained with 72m of floating pontoon anchored by vertical beams to the quay and two floating piers 40m long anchored with piles.
6 km of all-concrete finger and pontoons, anchored with over 300 steel piles, creating 400 berths for boats up to 40m
Since 2014, supply of different landings across Saudi Arabia shores for the border guard, with various characteristics: breakwaters; aluminium and hot dip galvanised painted steel pontoons; rotomoulded and concrete floaters; rods, piles and chains anchoring.
Electro-mechanical floating crossing over the Livorno channel between the Fortezza Vecchia and the city center.
A modern marina with 120 berths for yachts from 8m up to 32m moored to 500m of floating pontoons 2,5m and 3m wide. The pontoons are anchored with driven piles and the boats moor along the fingers. A large floating platform acts as focal point of the marina a giving access to the largest berths.
50m of floating pontoons made with heavy duty hot dip galvanized frames and concrete floaters
Replacement of the existing wooden decking with new floating elements 2,35m wide, complete with water and electrical services. Anchoring system with piles and wooden dolphin mooring for the boats.
Floating pontoons in reinforced contrete for the new maritime hub in Arabic Gulf made of 3no. elements with dimensions 20x4x2m, weigh 65t and high freebord of 80cm,

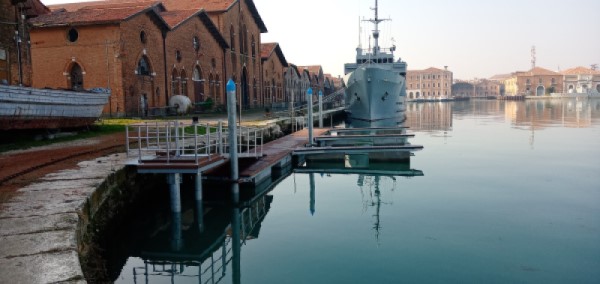

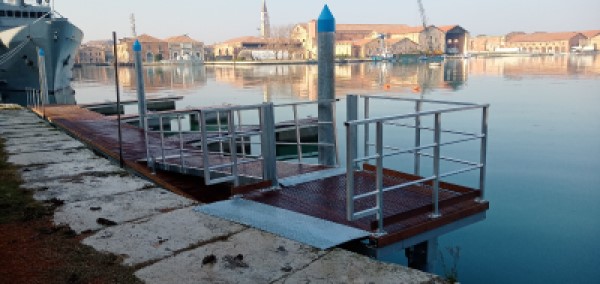

Special structures for coast guard landing within the Venice Arsenal.
Floating pier for tourist vessels.
Seven floating piers for total of 760 ml of floating pontoons for small boats in La Spezia.
Floating barrier made with n°6 modular 12x3 m elements, for protection of new berths.
Reinforced floating pontoons 2.5m wide.
Tourist port with capacity of 320 for boats up to 25 m, consisting of floating pontons and piers anchored with steel piles drived into the tuff rock. Quay paved with tropical timber, the same as on the floating structures. Double terminal pump out system.
Tourist port composed of 2250 m of floating pontoos and piers from 1,6 to 4 m wide, all anchored with steel piles. The structures are characterised with 300kg/sqm overload and freeboard between 0,6 and 0,8 m. There are 316 catways up to 1,4 m wide for mooring of the vessels up to 21 m long.
Supply of floating pier anchored with rods for to increase the berths numbers.
2012 - 650m of floating pontoons with steel frame, wooden decking and continuos flotation for 150 berth from 9m up to 30m.
2018 - Renewal of the marina with 3m wide floating elements with continuous flotation, 6m long minifingers .

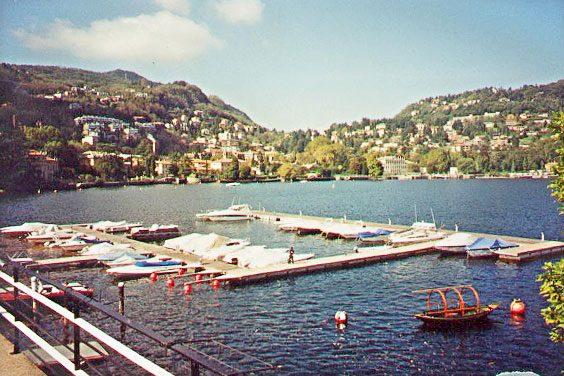

Boat landing on lake Como.
1500 ml of floating piers 4 m wide and floating pontoons 3 m and 2,5 m wide; 1850 ml of catway from 1 to 2, m wide. All anchored with steel piles.
Floating pontoons 2.35m wide.
Special floating platform with 2 m freeboard for 500 tonns vessel mooring.
Replacement of old floating pontoons and a platform at Port Hercule. The new elements are all-concrete monolith 2,5 m wide pontoons.
Expansion of the mooring facilities for the Nautical Club, with 2,35 m wide floating pontoons.
Floating pontoons at the mouth of the Magra river.
Floating pontoons 2.35m wide.
7000 square meters of floating pontoons and finger with aluminum alloy frames, concrete floaters and wooden deckings.
Supply from 2006 to 2019 of floating pontoons and floating breakwater for 300 berths from 10 up to 35m lenght for the water hub in Venice lagoon. Mooring system with fingers and dolphin mooring. Floating pontoons anchored with piles.
1999 - Surface of about 270 sqm. Free board 75 cm, overload 550 kg/sqm. Anchoring system with piles and sliding devices. Fitting of a floating tank for fresh water accumulation and pre-arrangement for the installation of the office structure.
2012 - Supply of new continous floatation pontoons.
In 2003 supply of N 5 modules dimensions m 12x3, anchored with chains and deadweights giving protection to 20 berths. The breakwaters are used also for mooring of boats up to 10 metres in length.
In 2012 extention of the floating pontoons supplied in 1994.
Surface about m² 30.
2001 - Tourist redevelopment of the Porto Antico achieved by installation of floating pontoons, gangways and service floating structures.
2012 - Floating structures restyling and extension.
Floating pontoons Harbour with piles anchoring system at mouth of Brenta river.
Floating pontoons pier with beams anchoring system.
Floating platform dimensions 6x4m for small lake boats.
Multifunctional landing for sport activities.
Floating pontoons for U.S.A. navy vessels.
Marina for local yachtsmen, situated outside Porto Mirabello, made with floating pontoons 3 and 6 m wide and protected by floating breakwaters.
Slipway for the haulage and launching.
Floating pontoon ancore with piles on the Po river.
Landing for service boats in Venice.
n 9 modules 12x3 anchored with chains.
Floating pontoons harbour.
Floating breakwater anchored with piles and floating pontoons anchored to the quay with vertical beams.
Floating pontoons anchored with piles and provided of finger till 13,5m length for mooring boats.
Floating port with fingers and minifingers near Genoa Airport.
Floating walkway for restyling of the Port Authority Headquarters.
Floating pontoon for reflueing.
Fixed quay realized with pontoons frames with wooden decking for mooring vessels.
240m of floating breakwater 3m and 4m wide, 364m of FE/IG/R H 2,35m wide floating pontoons to obtain up to 300 berths. Anchoring system with chains and concrete mooring blocks.
Floating port realized with 3 floating piers 44m each for yacht up to 12m. Anchoring system with chains and concrete mooring blocks.
Floating pier with polyethylene floaters for kayak and windsurf.
New floating pontoons for the historical basin increase the number of yachting berths to 250

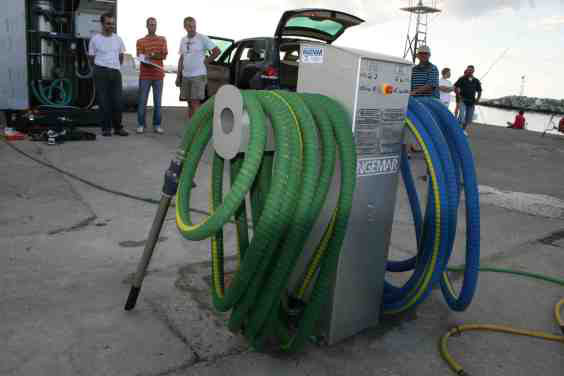

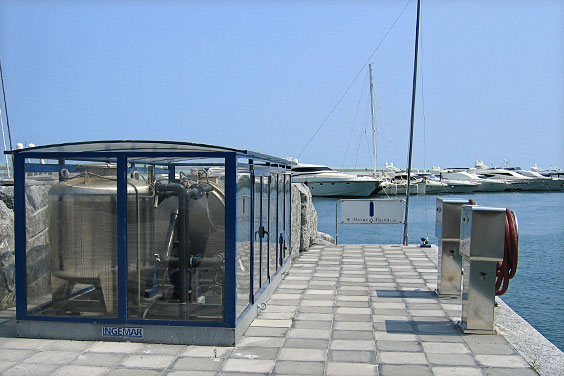

Full optional pump out station type CV150SN with isolated shell, sewage suction terminal model HD.
Floating pontoon ancored with piles on Magra river.
Floating pier 72m lenght for house boats. Anchoring system with piles and sliding devices.
Floating piers, dimensions 36x4.63 meters, free board 75 cm, overload 350 kg/mq for moorin big vassels. Anchoring system with chains and deadweights.
n 5 modules 12x3 anchored with chains and deadweight for mooring yacht.
n 3 modules 15x4 anchored with chains and deadweight for mooring yacht.
n 10 modules 12x3 anchored with chains and deadweight for mooring yacht.
Touristic harbour for 650 berths on all-concrete floating pontoons 3m wide. The vessels mooring systme emply catway and dolphin mooring.
Slipway dimensions m 15x10 for the haulage and launching of the sailing school boats.
2008 - n 5 modules dimension 12x3 anchored with chains and deadweight for mooring yacht.
2018 - Additional 2no. floating breakwater elements 12x3m, with mooring accessories and marine lamp.
n 3 modules dimension m 20x4 anchored with chains and deadweight for mooring yacht.
n 25 modules dimension m 12x3 anchored with chains and deadweight for mooring yacht.
Turn key supply of 1850m of continuous floating pontoon 3m wide with fingers and anchoring piles for berth from 7m to 25m.
Floating port realized with 216m of continuous floating pontoon 3m wide and with 136m of discontinuous floating pontoon 2m wide. Anchoring system with piles and mooring system with catway.
Enlargement of the exixting floating basin.
About 500 metri of floating structures for Maxi Yacht. Continuous floating pontoons 3m wide and discontinuous 2,35m wide. Mooring system with catway and ropes.

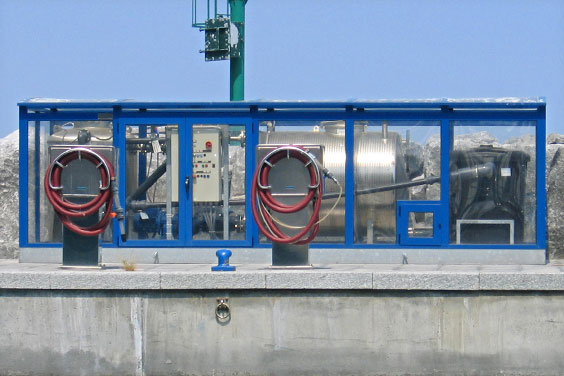

Full optional pump out station type CV150SN with isolated shell, sewage suction terminal model Alfa.
Floating link 140 m length and 3 m wide anchoring with piles.
Surface about m² 420. Free board 65 cm, overload 400 kg/m². Anchoring system with quay hinges.
Surface about m² 235. Free board 65 cm. Anchoring system with piles.
Wood decking to cover 710 square meters of piers and quay.
Fixed pontoon 5 m width. Fixed pontoon for mooring megayacht up to 60m.
n 3 modules dimension 12x3 for mooring boats.
Floating special structures for the Coastguard boats.
Turn key project with 1605 metres of continuous floating pontoons 3m wide. Reinforced frame, free board 60 cm, overload 360 kg/m². Pontoons anchoring system with steel piles. Boats mooring system with fingers.
60 metres of pontoons type "King Size" characterized by discountinuous floating elements, width 3 metres. Reinforced frame, free board 75 cm, overload 250 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
450 metres of discontinuous floating pontoons type "FE/IG/H1", width 2.35 metres. Free board 55 cm, overload 170 kg/m². Pontoons anchoring system with quay beams and sliding devices and steel piles and devices. Boats mooring system with mini-finger and wood piles.
360 metres of discontinuous floating pontoons type "FE/IG/R-H", width 2.35 metres. Reinforced frame, free board 75 cm, overload 250 kg/m². Pontoons anchoring system with steel piles and sliding devices. Along side boats mooring system.
The crossing connects the two banks of the water way Padua-Venice. It is a "boat bridge" typology structure with floation units perpendicular to the walkway. Length 58 metres, width 2.4 metres and overload of 400 kg/m². From the crossing there is the access to N 2 side pontoons with lower free board to be used for rowing.
N 2 landings m 12x4.63 for the mooring of boats up to 20 metres in length. Hinged access gangways m 6x1.20. Anchoring system with piles and sliding devices.
N 1 landing m 32x4.63 with defelcting wedge for boats up to 10 metres in length. Hinged access gangways of m 18x1.20. Anchoring system with piles and sliding devices.
N 1 landing m 12x2.35 with defelcting wedge for boats up to 12 metres in length. Fixed access gangways of 15x1.20 and hinged gangways from m 13x1.20. Anchoring system with rods and wire ropes.
Fixed quay dimensions m 280x3.50 on steel brackets fixed to the quay. Quay equipped with rubber fender and protection handrail.
Fixed platform on piles for a total surface of 325 square metres.
Installation of two mooring piers in 2008.
Floating pier dimensions m 630x4.70, free board 75 cm, overload 250 kg/m² for the mooring during the Boat Show, of boats up to 20 metres in length. Anchoring system with piles and sliding devices.
N 3 modules dimensions m 12x3 anchored with chains and deadweights giving protection to 100 metres of quay for fishing moorings.
N 6 modules dimensions m 20x4 anchored with chains and deadweights giving protection to all in-water exhibition spaces.
120 metres of discountinuous floating pontoons type "King Size", width 3 metres. Reinforced frame, free board 75 cm, overload 250 kg/m². Pontoons anchoring system with quay beams and sliding devices. Boats mooring system with med moorings and deadweights.
300 metres for discontinuous floating pontoons type "FE/ST", width 2.35 metres. Free board 50 cm, overload 110 kg/m². Pontoons anchoring system with steel piles and sliding devices. Boats mooring system with med moorings and deadweights.
350 metres of discontinuous floating pontoons type "FE/ST", width 2.35 metres and 65 metres of discountinuous floating pontoons type "FE/ST", width 2 metres. Free board 50 cm, overload 110 kg/m². Pontoons anchoring system with steel piles and sliding devices. Boats mooring system with fingers.
Full optional pump out station, aluminium frame structure with plexiglas shell, sewage suction terminal, oil suction terminal, oil tank and bilge water oil separator.
Slipway dimensions m 15x10 for the haulage and launching of the sailing school boats.
Slipway dimensions m 15x5 for the haulage and launching of the small boats for special events.
N 1 landing m 12x2.35 for boats up to 12 m provided with mini fingers. Fixed access gangways of m 6x1.20 and hinged gangway of m 6x1.20. Anchoring system with piles and sliding devices.
N 4 landings dimensions m 12x2.35 with deflecting wedges, hinged access gangways m 8x1,30, anchoring system with piles and sliding devices.
Moorings for public transport boats. Pontoons dimensions m 20x2.50 and 40x2.50 for a total of 500 m². Anchoring system with piles and sliding devices.
Surface about m² 520. Free board 80 cm, overload 400 kg/m². Anchoring system with quay hinges.
N 5 modules dimensions m 20x4 anchored with chains and deadweights giving protection to about 300 berths.
N 4 modules dimensions m 12x3, anchored with piles driven in the seabed giving protection to 80 berths. The breakwaters, equipped with fingers too, are used also for the mooring of boats up to 10 metres in length.
N 6 modules dimensions m 20x4, anchored with chains and deadweights giving protection to the shipyard. The breakwaters are used also for the mooring of boats up to 35 metres in length.
Floating infrastructures with pontoons, catways, gangways, anchoring and mooring system of the new marina.

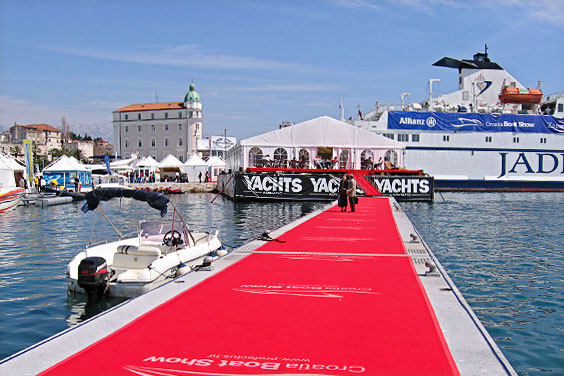

Supply since 2005 of floating structures for the sea exibition area: 9400 square meters of floating piers up to 9m wide, slipways and floating platforms.
250 metres of discontinuous floating pontoons type "FE/IG/R", width 2.35 metres. Reinforced frame, free board 50 cm, overload 120 kg/m². Pontoons anchoring system with connecting rods and steel wire ropes and chains connected to deadweights. Boats mooring system with med moorings and deadweights.
N 4 slipways dimensions m 12x2.35 for the haulage and launching of boats during the Winter Regattas.
Landing dimensions m 5x3.00 for boats up to 15 metresw in length. Hinged access gangways m 4.60x1.25. Anchoring system with wood piles and devices.
Floating exhibition pavilion for the Biennial of Architectur. Main pavillion dimensions m 110x6 equipped with N 3 side platforms for a total surface of 250 m². Floatation units in rotomoulded polyethylene.
Surface about m² 180. Free board 25 cm, overload 100 kg/m². Anchoring system with vertical beams fixed to the quay.
Decking made of wood and aluminium prefabricated panels for a total surface of 750 m².
Floating pier dimensions m 80x4.15, free board 80 cm, overload 450 kg/m² for the mooring of boats up to 30 metres in length. Anchoring system with chains connected to concrete columns.
Floating pier dimensions m 160x4.63, free board 85 cm, overload 300 kg/m² for the landing of passengers from touristic boats and water-taxi up to 20 metres in length. Anchoring system with piles and sliding devices.
N 14 modules dimensions m 12x3, anchored with piles driven in the seabed giving protection to 80 berths. The breakwaters are used also for the mooring of boats up to 15 metres in length.
Floating harbour on the Temo river with floating pier dimensions m 180x4.70, free board 80 cm, overload 400 kg/m² for the protection of the floating harbour and for the mooring with fingers of boats up to 14 metres length. Floating platfom dimensions 20x19m. Anchoring system with piles and sliding devices. Full optional pump out station, aluminium frame structure with plexiglas shell, sewage suction terminal, oil suction terminal and oil tank.
200 metres of discontinuous floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
275 metres of discontinuous floating pontoons type "FE/IG/R-H", width 2.35 metres. Reinforced frame, free board 70 cm, overload 240 kg/m². 80 metres of discontinuous floating pontoons type "FE/IG/R", width 2.35 metres. Reinforced frame, free board 50 cm, overload 120 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
340 metres of discontinuous floating pontoons type, "FE/IG/R-H", width 2.35 metres. Reinforced frame, free board 70 cm, overload 240 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Rowing pontoon for boats launching, dimensions m 48x2.35, free board about 30 cm, with an access pontoon for the access of m 240x2.35, free board 50 cm. Anchoring system with piles and sliding devices.
Slipway dimensions m 16x5 for the haulage and launching of small boats.
The crossing connects the new service centre with the North quay. To allow the access to the basin the central bridge section can be opened electronically. The walkway, 51 metres in length and 2.60 metres wide, has an overload 400 kg/m². The opening central section creates a passage of about 6.50 metres wide.
N 1 landing m 12x4.63 for touristic boats up to 20 metres in length, equipped. Hinged access gangway of m 8x2.35. Anchoring system with piles and sliding devices.
Floating pontoon dimensions m 24x5 anchored with steel piles, used for the mooring of the Fire fighting dept. boats. Steel access gangway m 19x1.2.
Mooring infrastructures with floating pontoons, gangways, fixed quay and mini fingers in the Fosso Cagliana.
Olympic Games, Athens 2004 - Rowing-canoeing centre. 820 metres of rowing pontoonsFloating pontoons with free board lower than the standard one (16 or 24 cm) for launching and prize-giving, fingers free board 50 cm for the mooring of umpires boats and structures for race starting. Floating surface of 3.800 m².
Floating harbour with 24 modules dimensions m 12x3, anchored with chains and deadweights giving protection to 220 berths. The breakwaters are used also for the mooring of fishing boats up to 20 metres in length. Floating pier dimensions m 325x6.00, free board 75 cm, overload 240 kg/m² to allow the access to the mooring pontoons. Anchoring system with sloping beams hinged to the quay. N 1 platform m² 432 and No. 3 platforms m² 216. Free board 75 cm, overload 240 kg/m². Anchoring system with chains and deadweights.
10 slipways dimensions m 15x30 and 4 slipways dimensions m 15x15 used for the launching of boats during the saling races at Olympic Games in Athens 2004.
600 metres of discontinuous floating pontoons type "FE/IG/R", width 2.35 metres. Reinforced frame, free board 50 cm, overload 120 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Floating platform, m 20x5 and free board 20 cm, for the launching of the club members' rowing boats.
Slipway dimensions m 15x2.55 for the haulage and launching of small boats.
N 8 modules dimensions m 20x4, anchored with chains and deadweights giving protection to 60 berths. The breakwaters are used also for the mooring of boats up to 20 metres in length.
Demountable modular floating crossing, to be installed annually on the recurrence of the fest of the Redentore, between "Zattere" and isle of Giudecca. Length 326m.
Demountable modular floating crossing, to be installed annually on the recurrence of the fest of Madonna della Salute, to connect the Canal Grande quays in front of La Salute church. Length 57m.
Surface about m² 450. Free board 70 cm, overload 660 kg/m². Anchoring system with rods. Wedge-shaped upstream side in order to deflect the shrubs. Downstream side with free board 20 cm and 100 kg/m² overload for launching of the rowing boats. Pre-arrangement for the superstructures installation.
300 of discontinuous floating pontoons type "FE/IG/R-H", width 2.35 metres. Reinforced frame, free board 70 cm, overload 240 kg/m². 270 metres of discontinuous floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
The crossing connects the quay with the head of the Molo Embriaco. Length 60 metres, width 2.4 metres and overload 400 kg/m².
Surface about m² 200. Free board 75 cm, overload 300 kg/m². Anchoring system with chains and deadweights. Positioning of prefabricated boxes to be used as offices and gazebo. Motorized access gangways, length 6 metres.
Decking made of wood and aluminium prefabricated panels for a total surface of 1370 m².
Project, execution and installation of fixed gangway dimensions m 140x1,2, for the access to big boats berths (over 45 metres). Floating pier dimensions m 480x5, free board 50 cm, overload 150 kg/m² with fingers for the mooring of Speed Boats (displacement 9 tons). N 35 mooring piers for Patrol Boats (displacement 130 tons) dimensions m 35x5 each, free board 70 cm and overload 150.
300 metres of discontinuous floating pontons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Full optional pump out station, aluminium frame structure with plexiglas shell, sewage suction terminal, oil suction terminal and oil tank.
Floating structures for vessels mooring in a luxury location in Nord Sardinia
N 4 landings dimensions m 11,50x2,50 with deflecting wedges, hinged access gangways m 8x1,40, anchoring sytem with rods and wire ropes.
Floating pontoon dimensions m 300x2.35 anchored with ropes and deadweights, provided with a net for the birds capture and control.
N 4 modules dimensions m 17.5x4, anchored with chains and deadweights giving protection to 40 berths. The breakwaters are used also for the mooring of boats up to 15 metres in length.
floating harbour with 616 metres of pontoons, 288 metres of floating breakwaters, width 3.00 m. Full optional pump out station, aluminium frame structure with plexiglas shell, sewage suction terminal, oil suction terminal and oil tank.
1999 - 32 metres of discontinuous floating pontoons typee "AL/ST" with aluminium frame, width 1.60 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system with steel piles and sliding devices. Boats mooring system with mini fingers.
2019 - Supply of additional aluminium floating pontoon and 2no. 4.5m long minifingers.
N 1 landing dimensions m 12x2.50 for boats up to 12 metres in length. Fixed access ganways m 8x1.30 and hinged gangway m 5x1.30. Anchoring system with piles and sliding devices.
N 1 landing dimensions m 38x4.93 with deflecting wedge for boats up to 12 metres in length. Fixed access ganways m 15x2.20 with stair and No. 2 hinged gangway of m 16x1.44 and m 14x1.44. Anchoring system with piles and sliding devices.
N 2 landings m 12x6 and N 1 landing m 12x9 for boats up to 30 metres in length. Landing wood covering, hinged access gangways m 5x1.20, anchoring system with piles and sliding devices.
60 metres of pontoons.
Electrodes-carrier pontoon for Pirelli Cavi S.p.A.
Pump out station, sewage and oil suction tank.
Realization of N 2 crossings, length 120 and 50 metres, width 4.70 metres and overload of 400 kg/m². The crossings can be opened by hand in the central part creating a passage of about 9 metres.
Fixed pontoon dimensions m 8x2.35, on steel piles.
420 metres of discontinuous floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Surface about m² 170. Free board 65 cm, overload 300 kg/m². Anchoring system with chains and deadweights. Positioning of prefabricated boxes to be used as offices, service and technical equipment for the port.
Surface about m² 180. Free board 75 cm, overload 400 kg/m². Anchoring system with chains and deadweights.
Fixed pontoon along side the quay, dimensions m 317x1.50 on steel brackets fixed to the quay and 312 m² of fixed platforms on piles. Floating piers.
Floating pier dimensions m 216x4.2, free board 80 cm, overload 400 kg/m² for the mooring of boats up to 40 metres in length. Anchoring system with vertical beams fixed to the quay and sliding devices.
Floating harbour with breakwaters: 11 modules dimensions m 20x4, N 5 modules dimensions m 20x3 and N 14 modules dimensions m 12x3 anchored with chains and deadweights giving protection to 590 berths, pontoons, service platforms and technological plants.
N 22 modules dimensions m 20x4, anchored with chains and deadweights giving protection to 260 berths. The breakwaters are used also for the mooring of boats up to 20 metres in length.
Floating harbour with breakwaters and pontoons. N 14 modules dimensions m 12x3, anchored with chains and deadweights giving protection to 650 berths. The breakwaters are used also for the mooring of boats up to 24 metres in length.
300 metres of discontinuous floating pontoons type "FE/IG/R-H", width 2.35 metres. Reinforced pontoons, free board 70 cm, overload 240 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Pontoons dimensions m 280x3.60 with a platform with m 12.50x11.50 provided with N 8 electropumps of 480 litres/second and a 2.5 tons bridge crane. Depth variation 13 metres. Floatation units in coated galvanized steel filled up with expanded polyurethane.
100 metres of floating pontoons.
Floating infrastructures with floating pier dimensions m 57.5x5, free board 50 cm, overload 170 kg/m² for the separation of the port into two basins for the mooring of boats up to 20 metres in length. Anchoring system with chains and deadweights. Pump out station, sewage and oil suction tank.
300 metres of discontinuous floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Pontoons m 40x1.50 and platforms m 12x4.60 fixed on reinforced concrete bases.
Floating pier dimensions m 60x4.63, free board 55 cm, overload 240 kg/m² for the protection of the floating landing and for the mooring with finger of boats up to 10 metres in length. Anchoring system with chains and deadweights.
250 metres of discontinuouss floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Floating platform, m 20x5 and free board 20 cm, for the launching of the club members' rowing boats.
Pontoon dimensions m 26x2.40 with aluminium dam. Steel grid decking surface. Floation units in galvanized steel with different buoyancy.
380 metres of discontinuous floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system with chains connected to deadweights. Boats mooring with fingers.
Car crossing 36 metres in length, 2 metres wide and 2 metres high in the central part. It is a "boat bridge" typology structure and connects the Isle of La Maddalena with the Isle of Chiesa.
N 2 floating pontoons dimensions m 3x4.65 with galvanized steel handrail. Fixed access gangway m 3.3x2 and hinged gangway m 6.5x1.20. Anchoring system with steel piles and sliding devices.
Floating pier dimensions m 120x4.63, free board 80 cm, overload 400 kg/m² . Anchoring system with chains and deadweights.
Floating pier dimensions m 160x4.63, free board 50 cm, overload 150 kg/m² for the protection of the floating landing and for the mooring with finger of boats up to 12 metres in length. Anchoring system with chains and deadweights.
N 4 platforms m 24x4.60 with free board 20 cm for the haulage and launching of the athlets. Starting adjustable devices.
N 5 landings m 19x4.74 with deflecting wedge for boats up to 30 metres in length. Hinged access gangways m 8x1.00 with portal frame for gangway lifting, anchoring system with wood piles and guiding steel piles.
Shaped fixed pontoon, dimensions m 80x2.35 on steinless steel piles.
Boats landing up to 15 metres in length, adjustable height on piles. Dimensions m 13.5x1.50.
Total surface about m² 100. Free board 50 cm, overload 120 kg/m². Anchoring system with chains and deadweights.
Fixed pontoons and fingers on wood piles for the mooring of boats up to 10 metres in length.
Pontoon dimensions m 240x2.40 with N 2 platforms dimensions m 4.50x4.50 included N 6 electropumps of 300 litres/second. Depth variation 18 metres. Floatation units in coated galvanized steel filled up with expanded polyurethane.
Total surface about m² 300. Free board 75 cm, overload 400 kg/m². Anchoring system with chains and deadweights. Positioning of superstructures.
Floating pontoons with free board lower than the standard one (16 or 24 cm) for the boats launching, platform for the prize-having free board 50 cm and structures for race starting.
Pontoon dimensions m 70x3.20 ith N 2 platforms dimensions m 6x3.50 included N 3 electropumps of 200 litres/second. Depth variation 13 metres. Floatation units in coated galvanized steel filled up with expanded polyurethane.
Surface about m² 40. Free board 75 cm, overload 400 kg/m². Furnishing pre-arrangement. Anchoring system with chains and deadweights.
N 1 platform about 150 m² and No. 1 platform about 200 m². Free board 50 cm. Anchoring system with chains and deadweights.
500 metress of discontinuous floating pontoons type "FE/IG", width 2.35 metres. Free board 50 cm, overload 130 kg/m². Pontoons anchoring system and boats mooring system with chains, deadweights and med moorings.
Fixed pontoon along side the quay, dimensions m 50x2.35, for the mooring of boats up to 10 m in length, on steel piles.
N 4 platforms m 25x4.50 with free board 18 cm for launching.
Surface about m² 250. Free board 70 cm, overload 400 kg/m². Provided with service platform with lower free board. Anchoring system with chains and deadweights.
Pontoon dimensions m 40x2.10 included N 30 electrodes bearing devices, with 220KV direct current. Electrodes and electricity lines covering in fibreglass. Floatation units in fibreglass filled up with expanded polystyrene.
test
