References
In this section you will find a selection of our projects, with photographs and descriptions.
You can search by selecting one or more of the following criteria: geographical macro area, typology of project, geographical area (state, region or province).
MACRO AREA
- Italy
- Foreign countries
TYPOLOGY
- Major projects
- Marina and mooring points
- River and lake landings
- Floating piers
- Floating breakwaters
- Floating platforms
- Fixed piers and docks
- Floating bridges
- Water sport centres
- Slipways
- Special structures
- Plant
AREA
- Italy
- Foreign countries

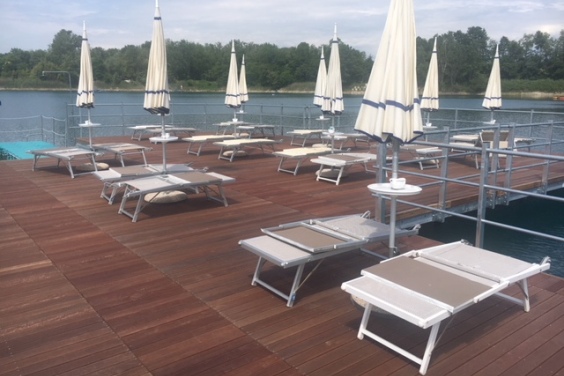

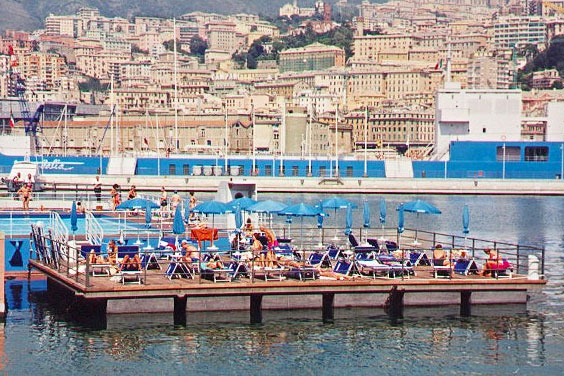

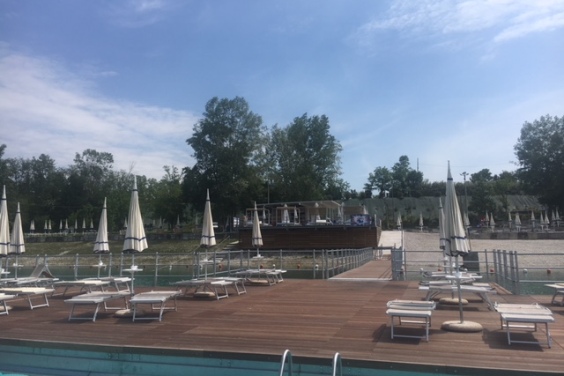

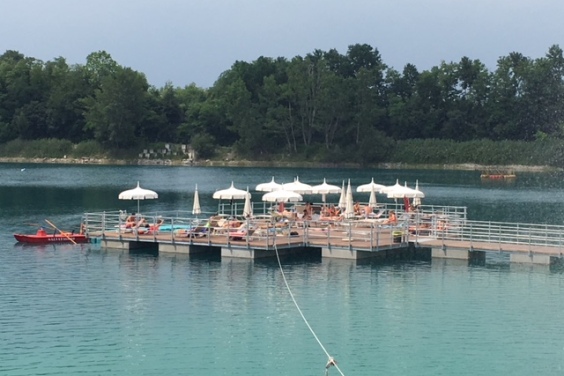

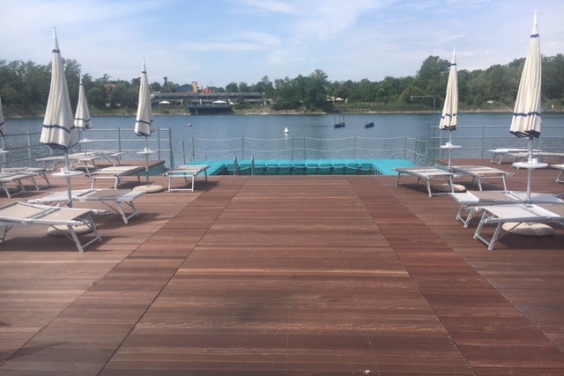

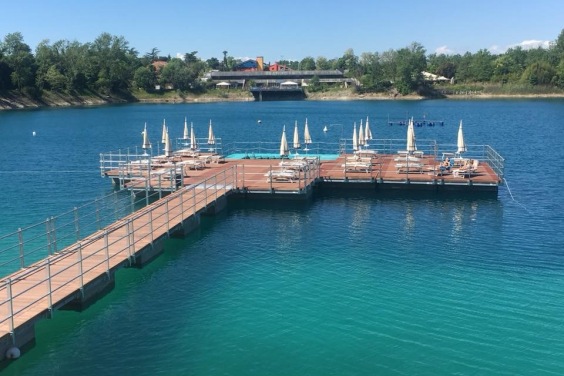

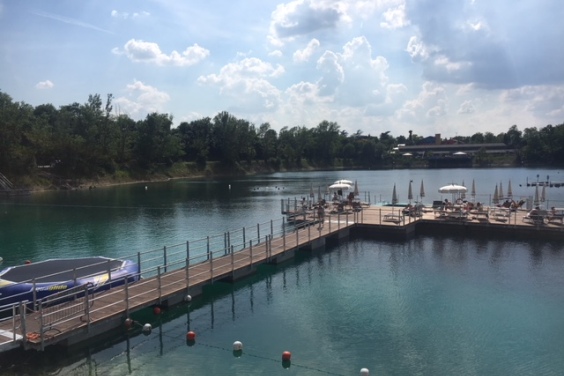

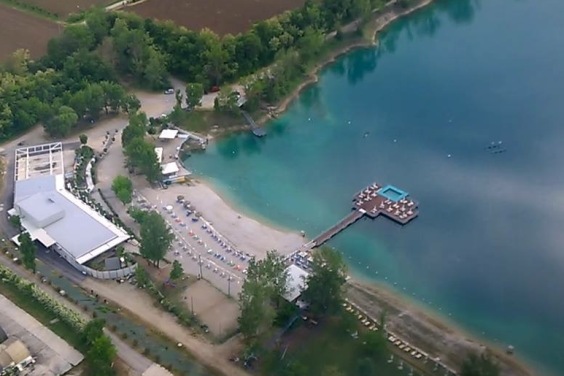

240sqm sunbathing floating platform with swimmingpool and floating connection to the beach of a private lake

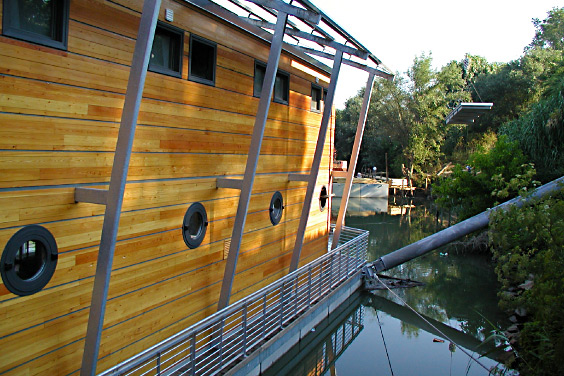

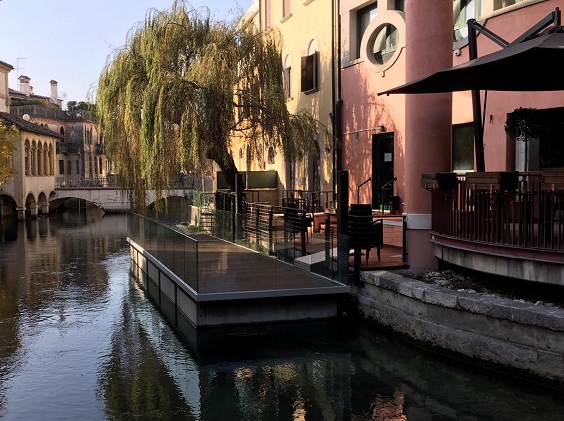

River floating platform 12x3m with glass panel parapets for leisure and relax

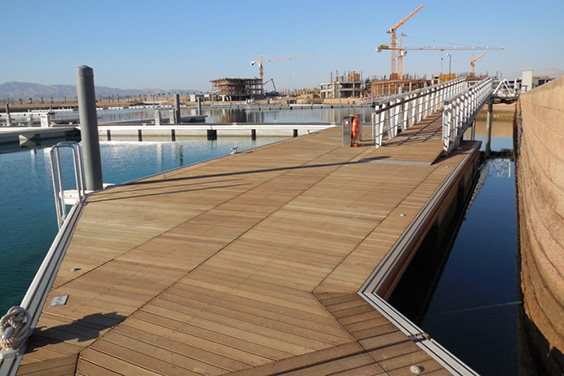

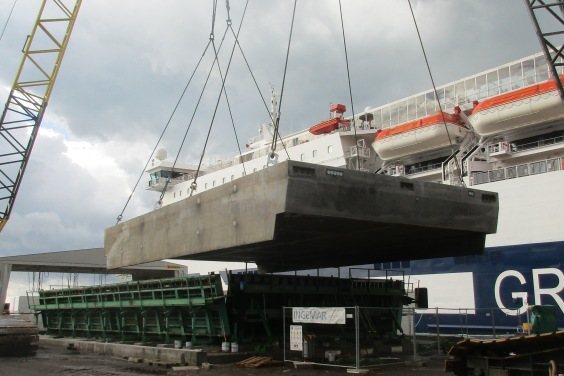

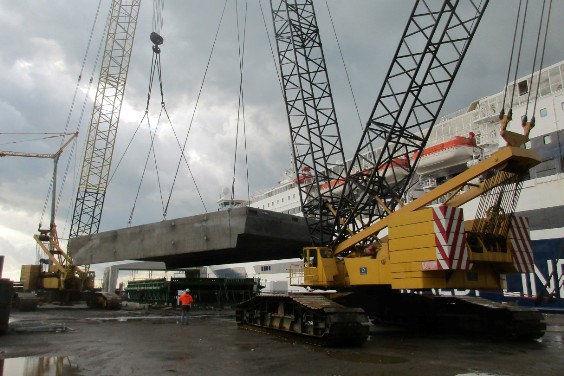

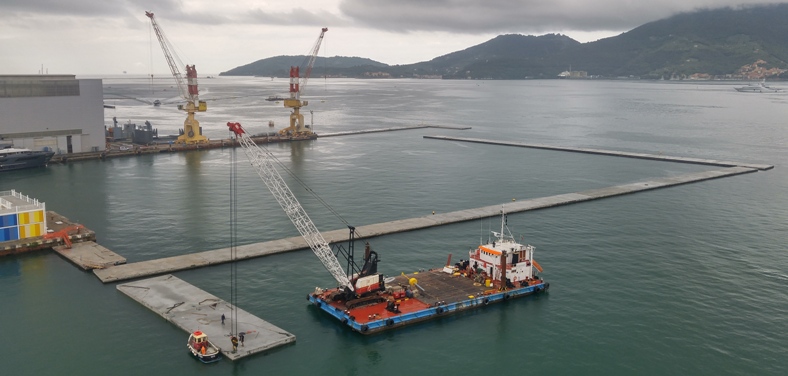

New harbour shelterd by 240m + 180m of monolotic elements of floating breakwaters with dimension 20x8m (150t) and 20x10m (180t). Inside, 1200m of all concrete floating pontoons, 2.4m wide, with tropical hardwood decking, are installed for boat berthing of local nautical centers.

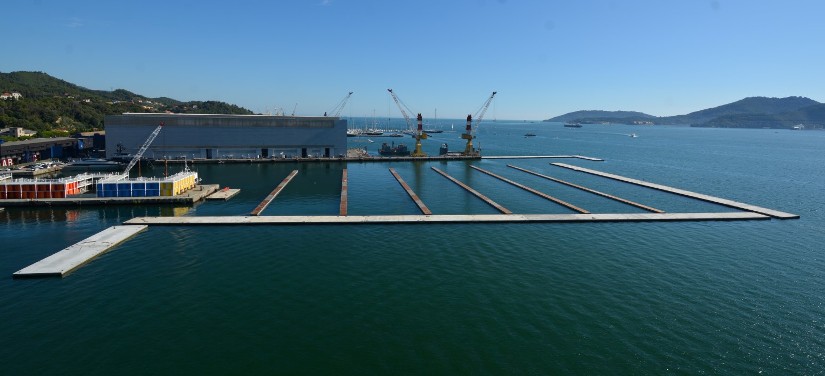

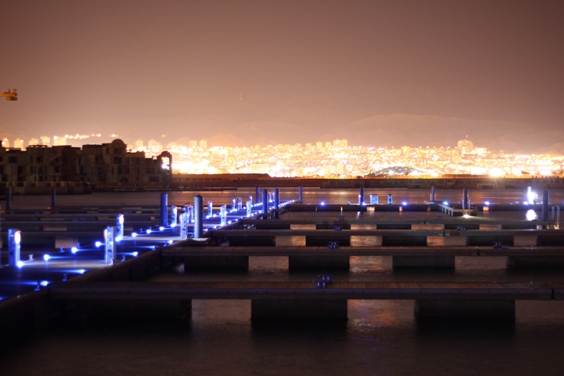

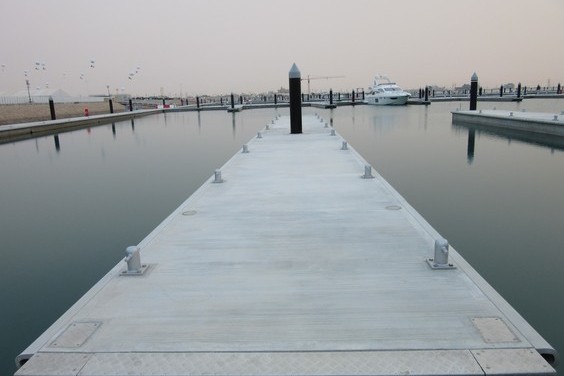

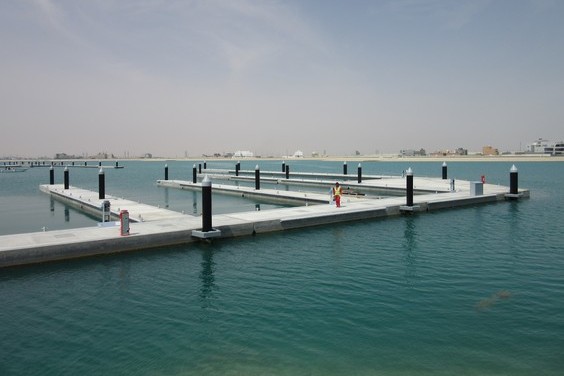

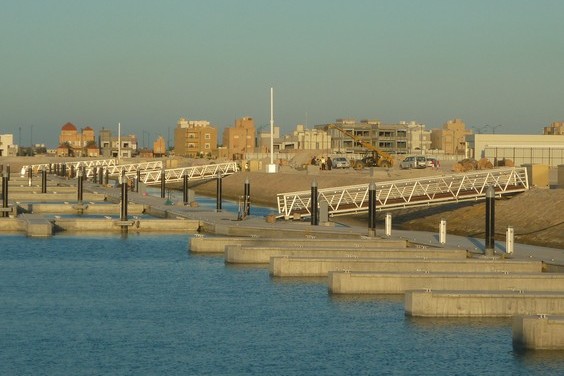

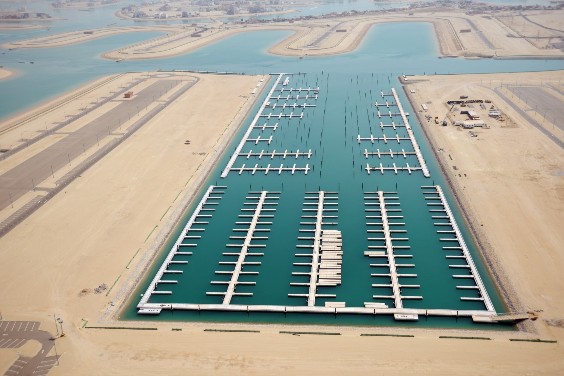

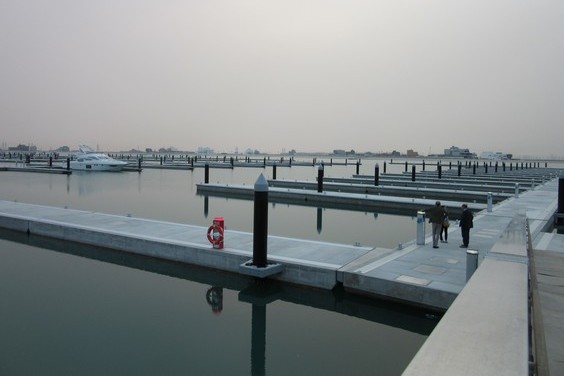

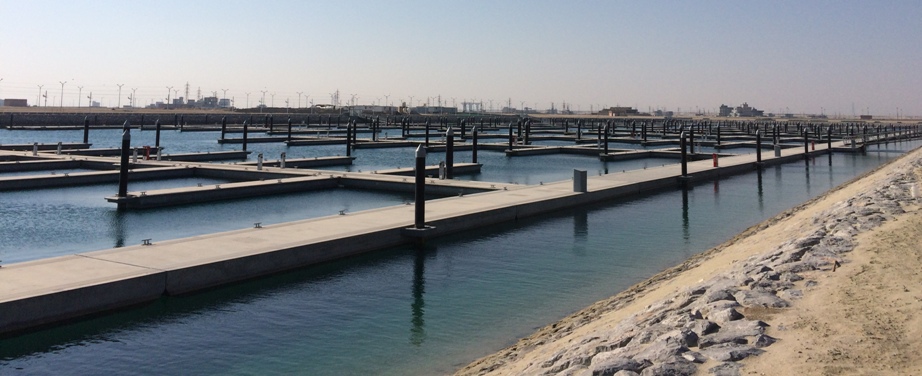

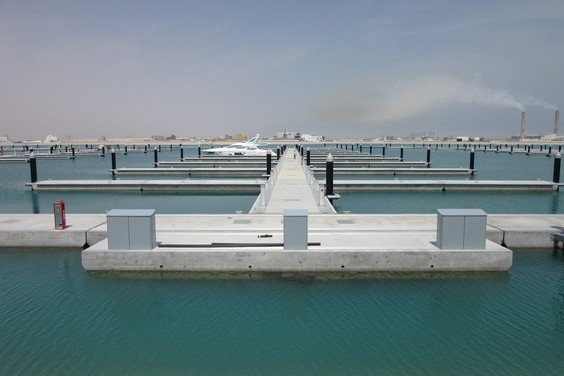

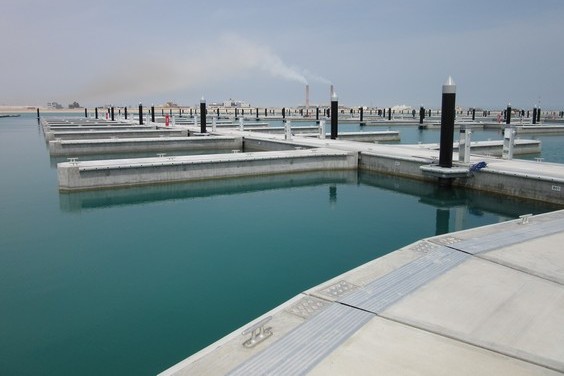

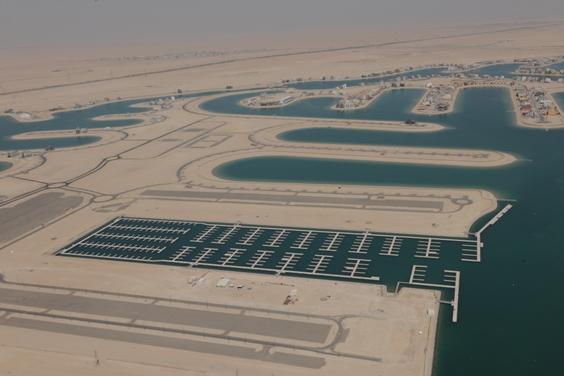

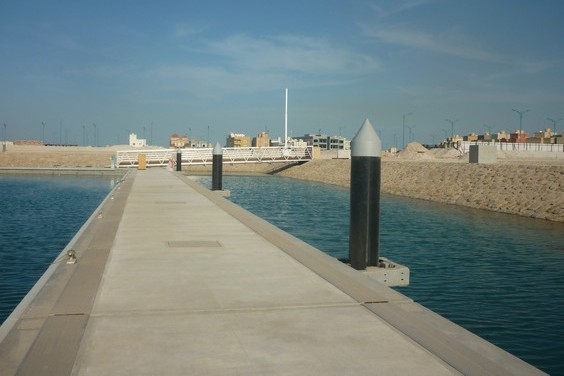

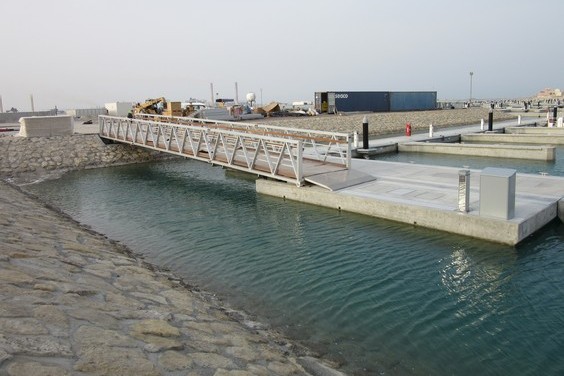

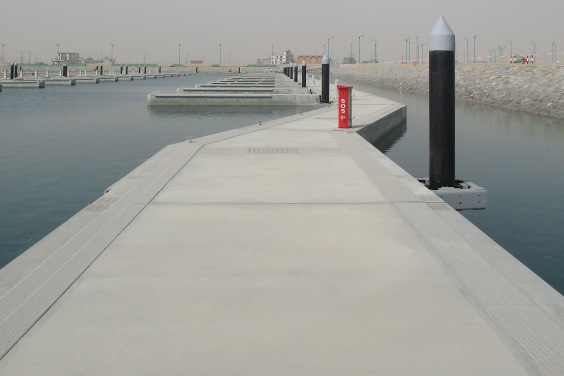

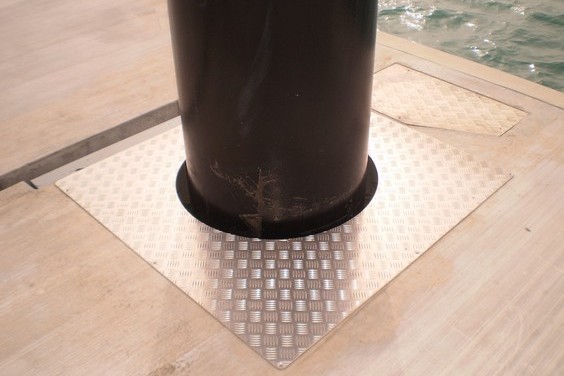

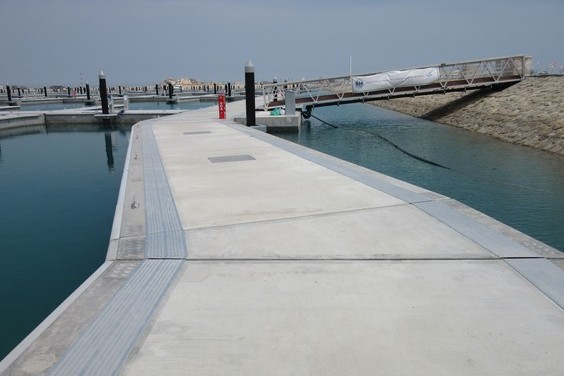

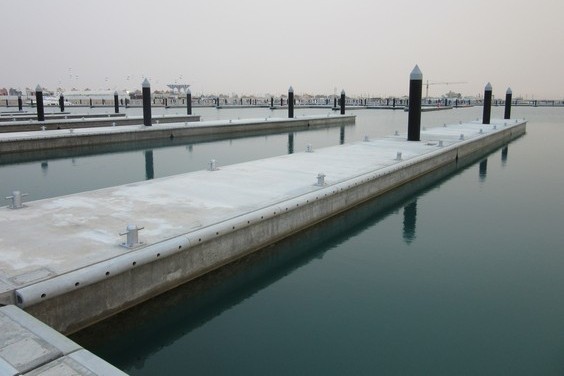

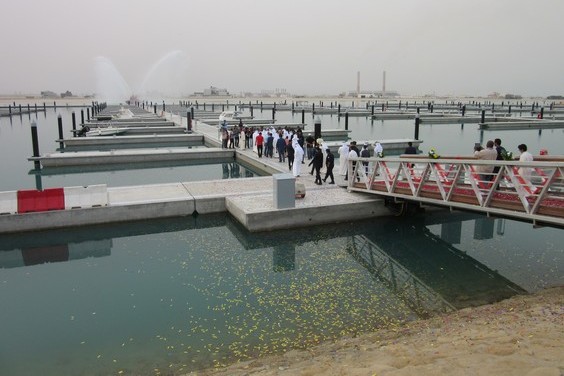

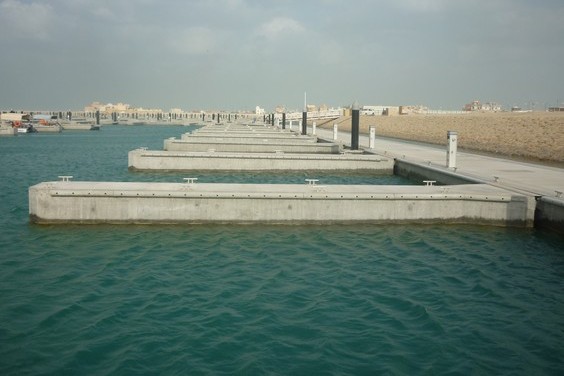

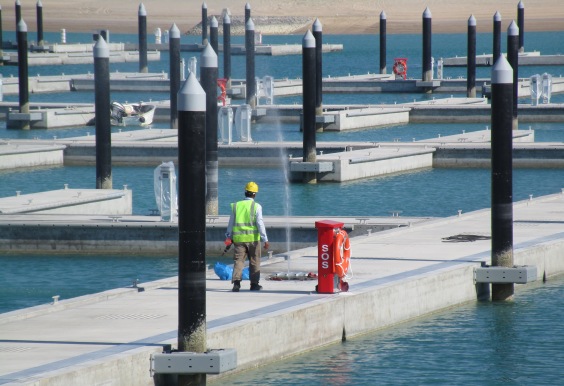

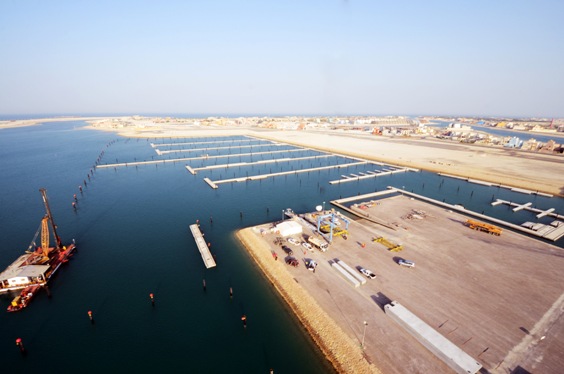

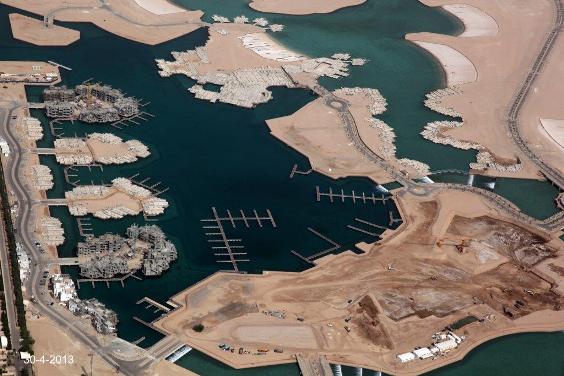

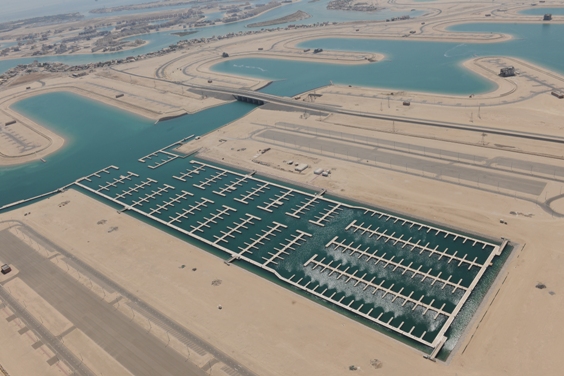

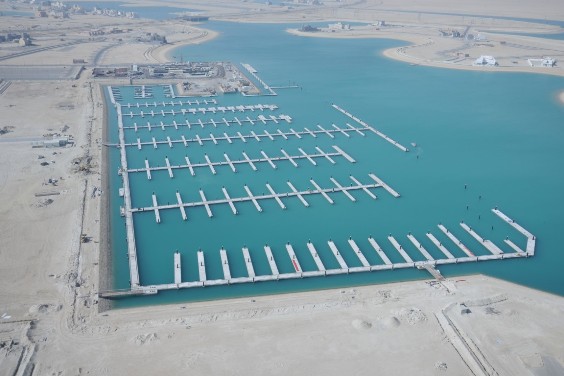

6 km of all-concrete finger and pontoons, anchored with over 300 steel piles, creating 400 berths for boats up to 40m

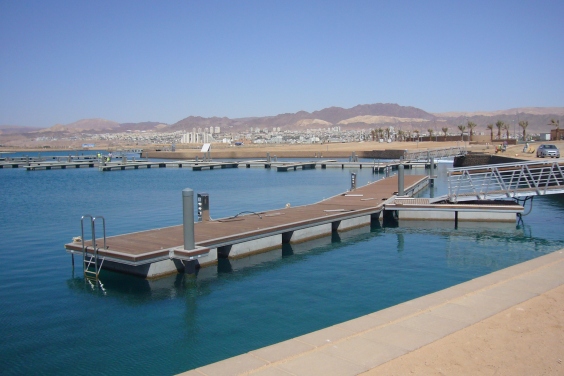

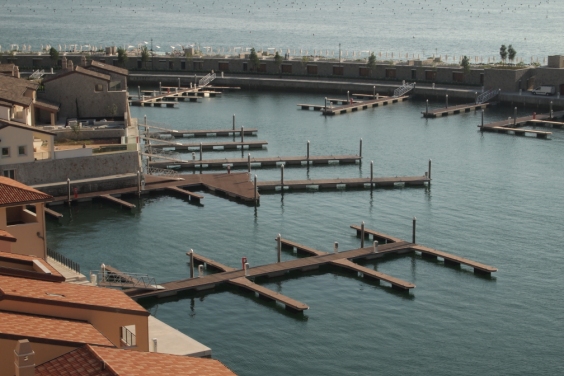

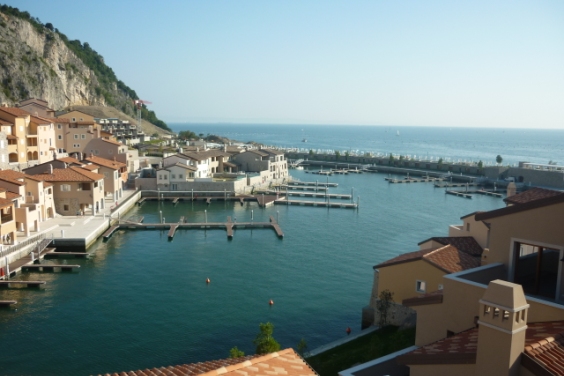

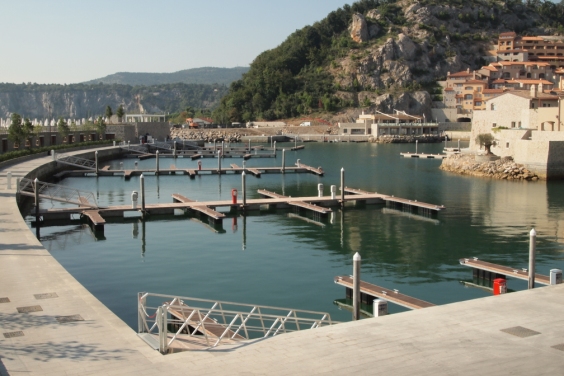

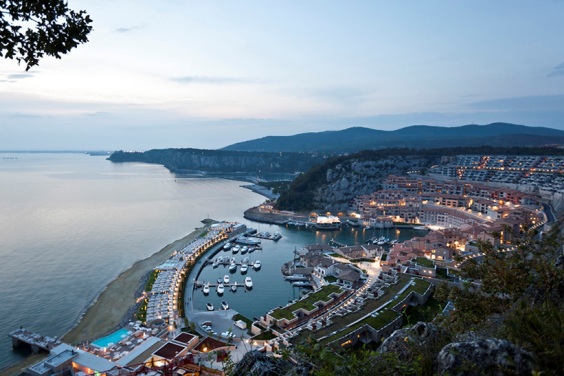

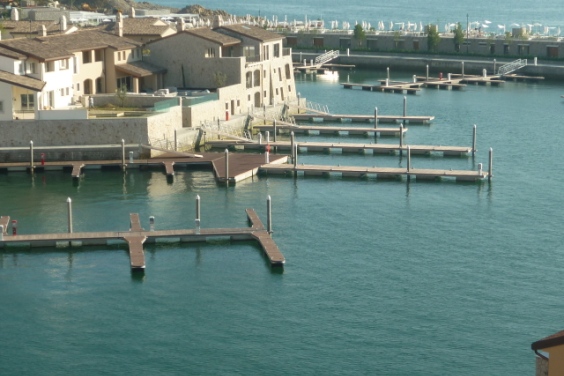

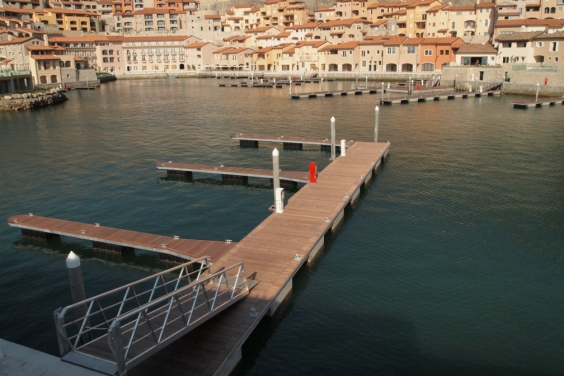

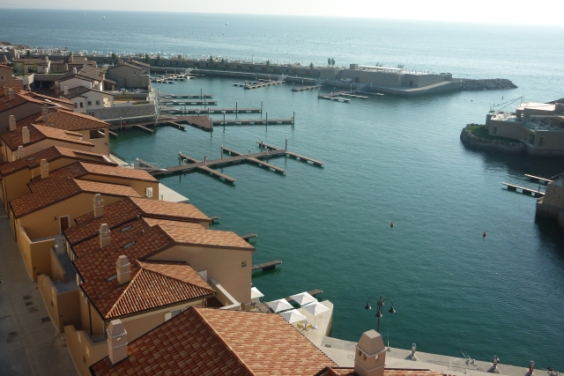

A modern marina with 120 berths for yachts from 8m up to 32m moored to 500m of floating pontoons 2,5m and 3m wide. The pontoons are anchored with driven piles and the boats moor along the fingers. A large floating platform acts as focal point of the marina a giving access to the largest berths.

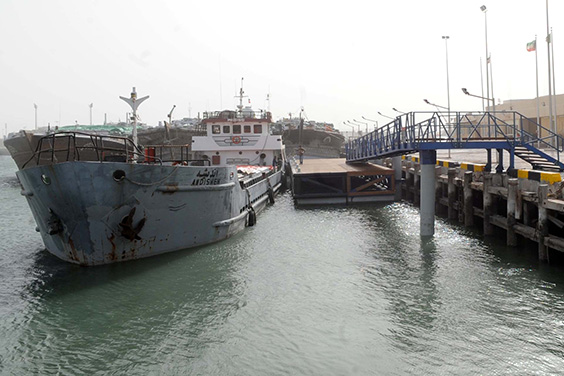

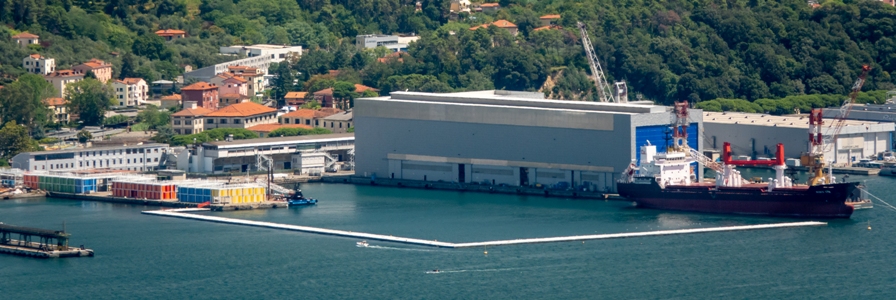

Special floating platform with 2 m freeboard for 500 tonns vessel mooring.

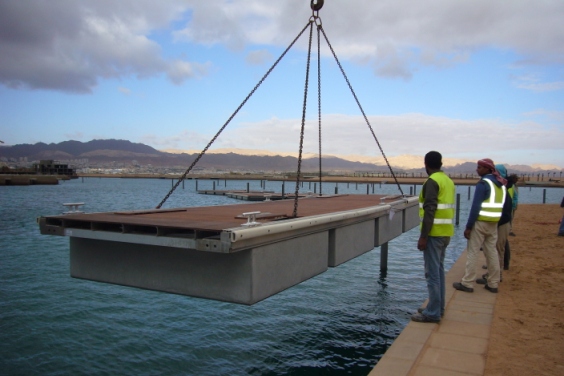

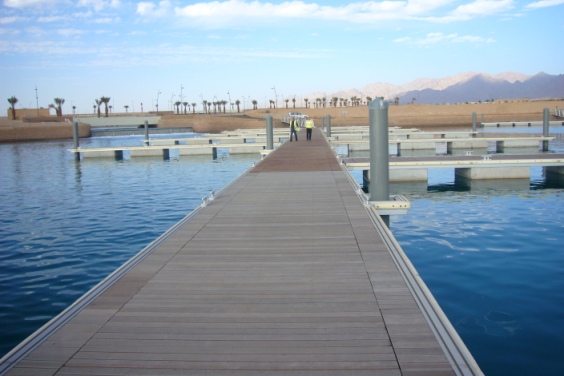

7000 square meters of floating pontoons and finger with aluminum alloy frames, concrete floaters and wooden deckings.
1999 - Surface of about 270 sqm. Free board 75 cm, overload 550 kg/sqm. Anchoring system with piles and sliding devices. Fitting of a floating tank for fresh water accumulation and pre-arrangement for the installation of the office structure.
2012 - Supply of new continous floatation pontoons.
Surface about m² 30.

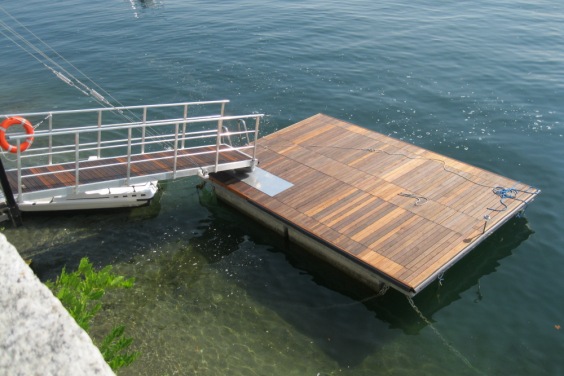

Floating platform dimensions 6x4m for small lake boats.
Surface about m² 420. Free board 65 cm, overload 400 kg/m². Anchoring system with quay hinges.
Surface about m² 235. Free board 65 cm. Anchoring system with piles.
Surface about m² 520. Free board 80 cm, overload 400 kg/m². Anchoring system with quay hinges.

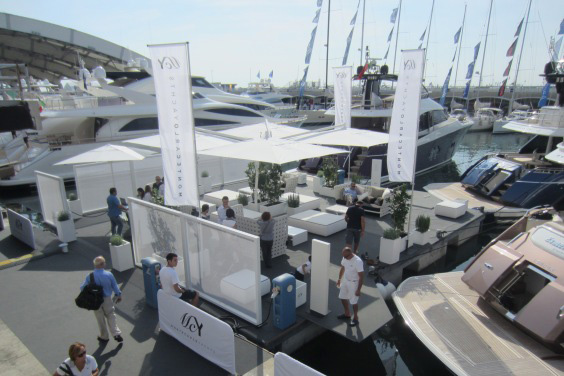

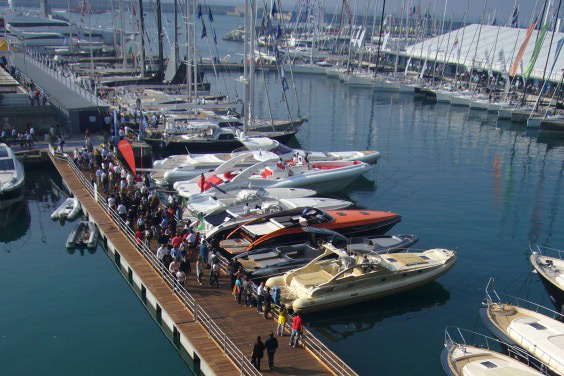

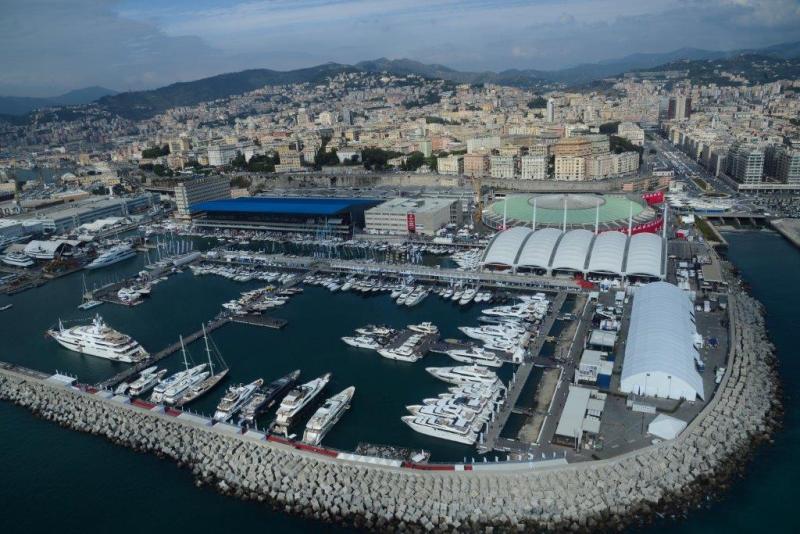

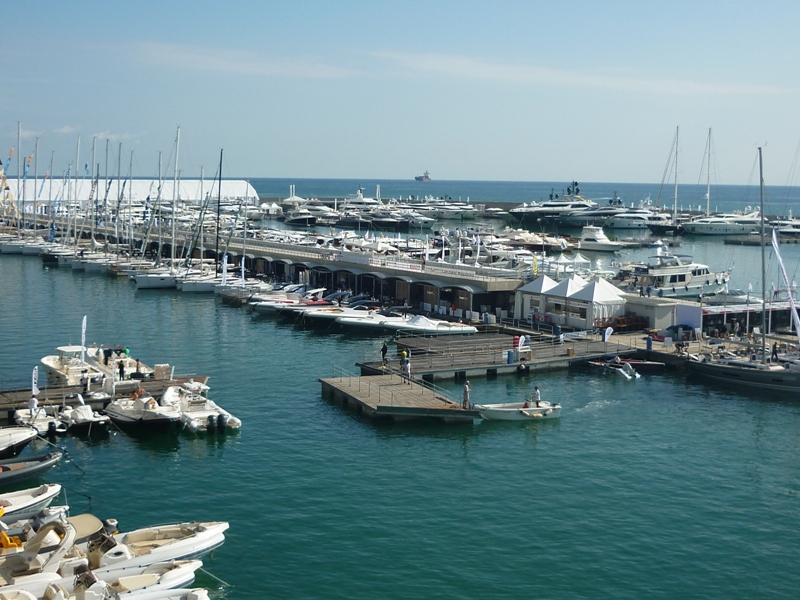

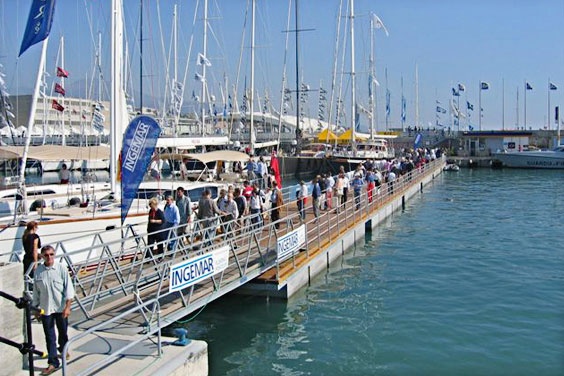

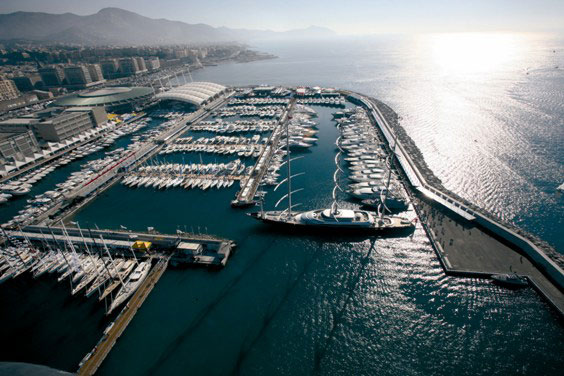

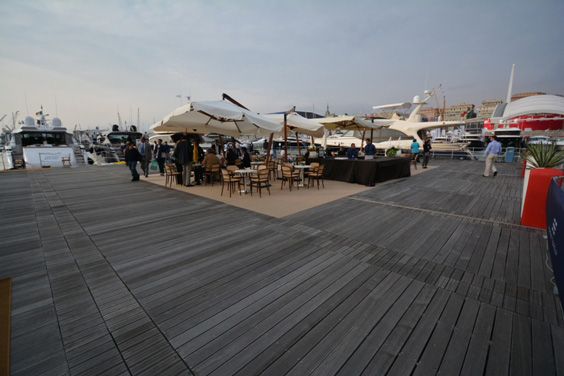

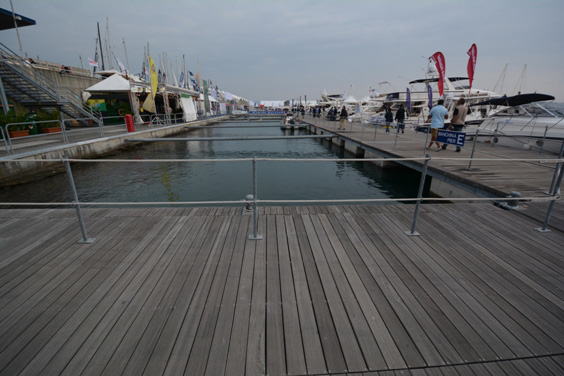

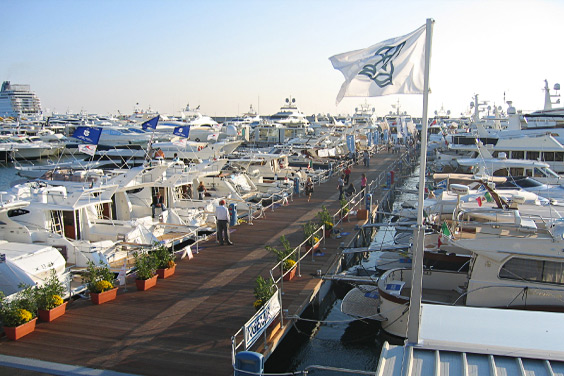

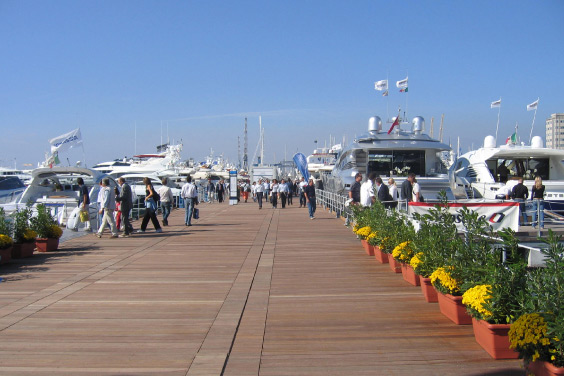

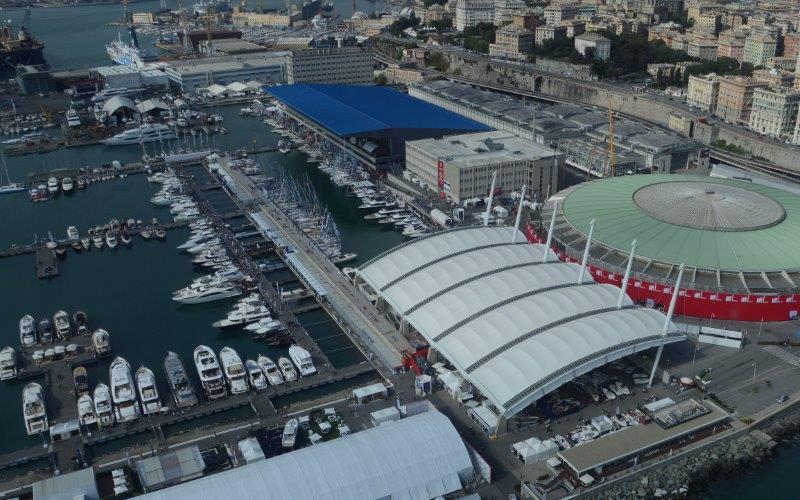

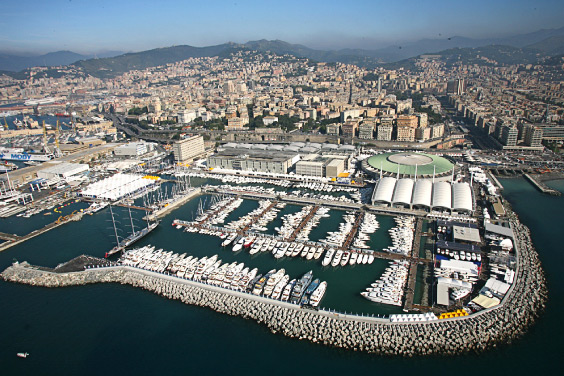

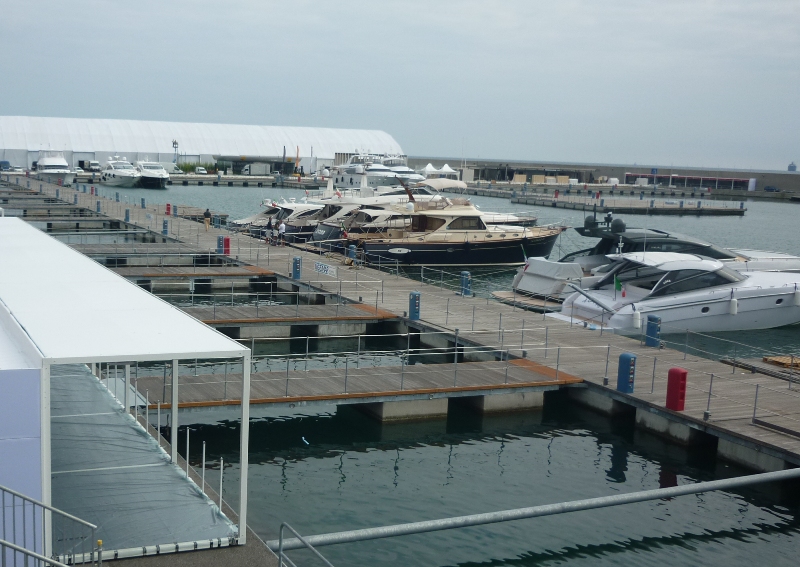

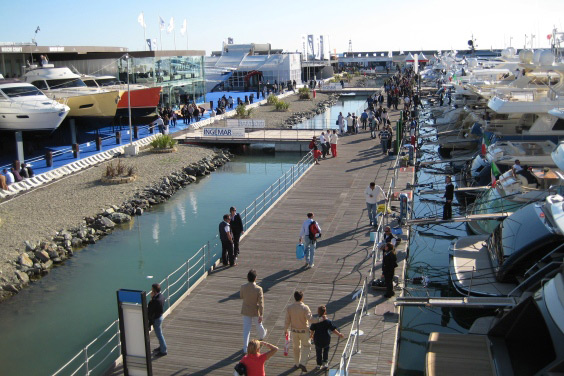

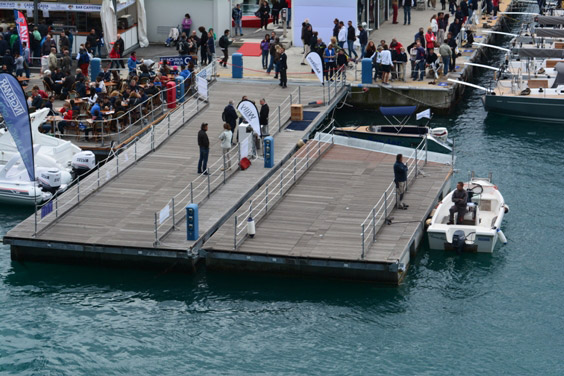

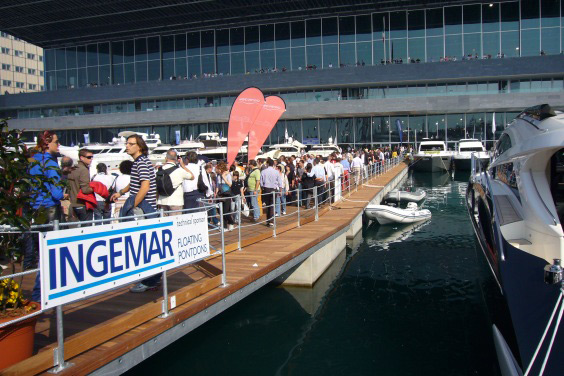

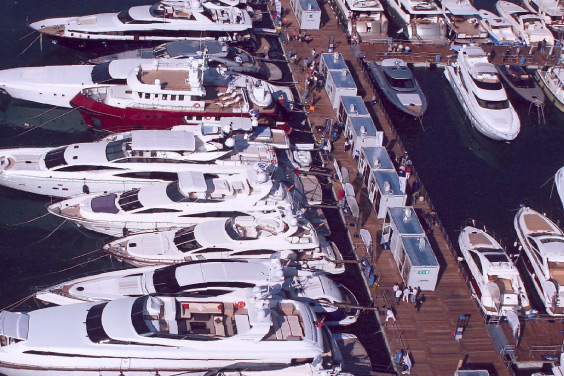

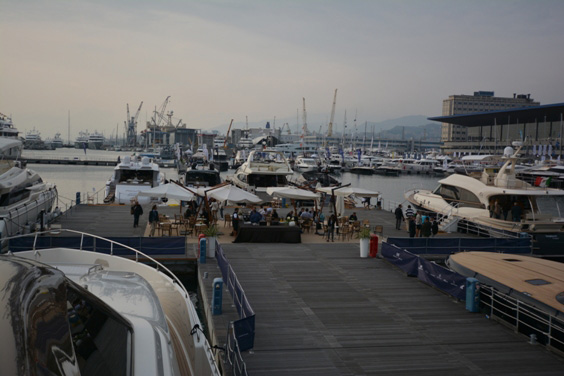

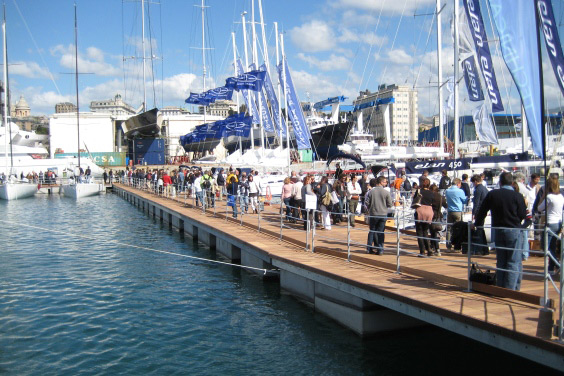

Supply since 2005 of floating structures for the sea exibition area: 9400 square meters of floating piers up to 9m wide, slipways and floating platforms.
Surface about m² 180. Free board 25 cm, overload 100 kg/m². Anchoring system with vertical beams fixed to the quay.

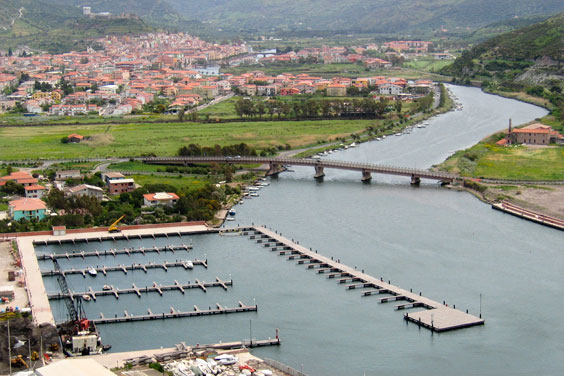

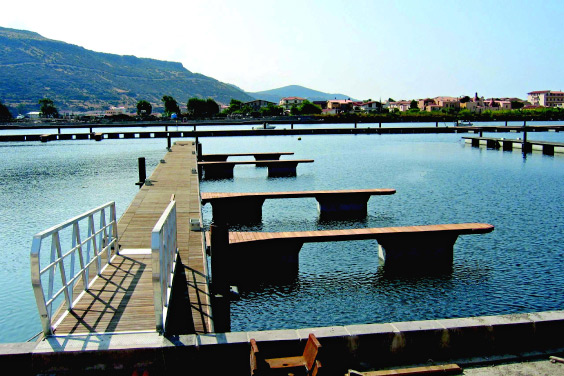

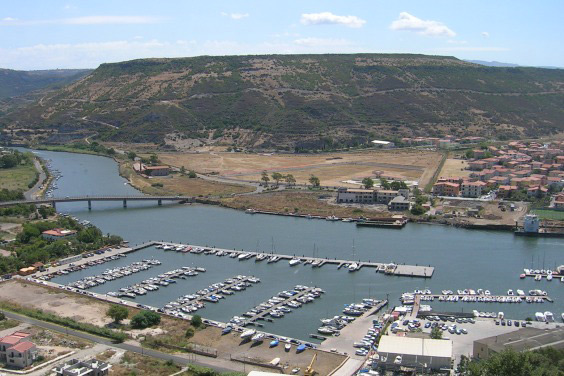

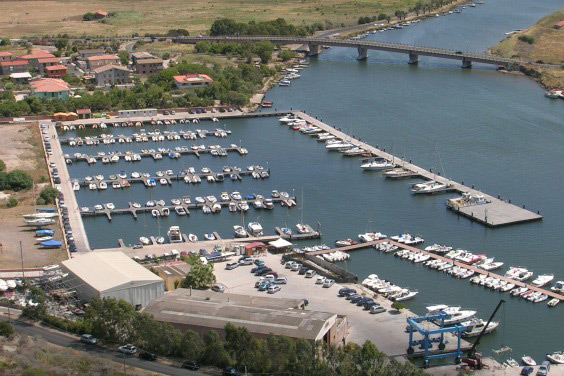

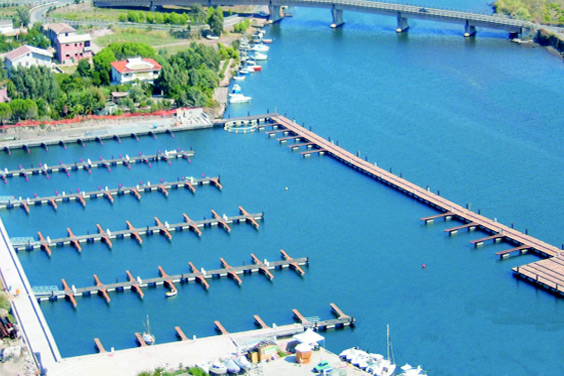

Floating harbour on the Temo river with floating pier dimensions m 180x4.70, free board 80 cm, overload 400 kg/m² for the protection of the floating harbour and for the mooring with fingers of boats up to 14 metres length. Floating platfom dimensions 20x19m. Anchoring system with piles and sliding devices. Full optional pump out station, aluminium frame structure with plexiglas shell, sewage suction terminal, oil suction terminal and oil tank.

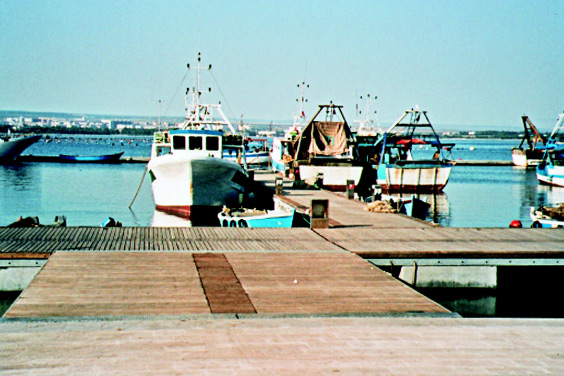

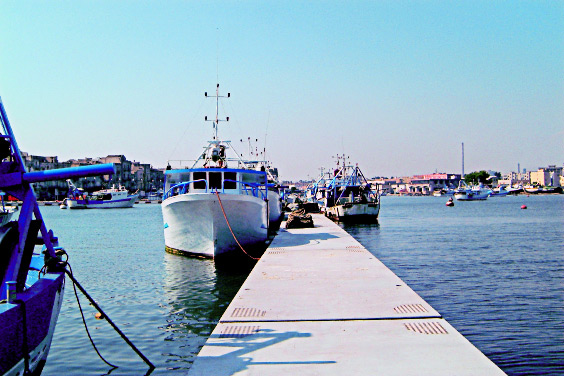

Floating harbour with 24 modules dimensions m 12x3, anchored with chains and deadweights giving protection to 220 berths. The breakwaters are used also for the mooring of fishing boats up to 20 metres in length. Floating pier dimensions m 325x6.00, free board 75 cm, overload 240 kg/m² to allow the access to the mooring pontoons. Anchoring system with sloping beams hinged to the quay. N 1 platform m² 432 and No. 3 platforms m² 216. Free board 75 cm, overload 240 kg/m². Anchoring system with chains and deadweights.

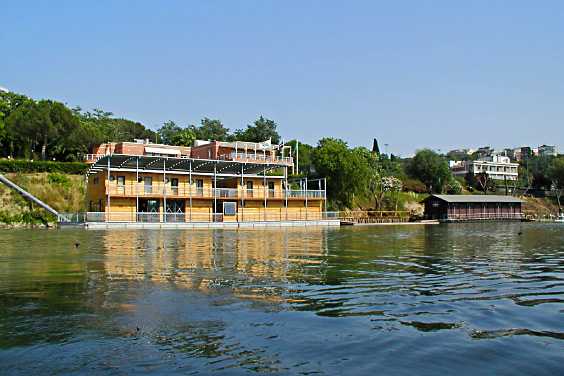

Surface about m² 450. Free board 70 cm, overload 660 kg/m². Anchoring system with rods. Wedge-shaped upstream side in order to deflect the shrubs. Downstream side with free board 20 cm and 100 kg/m² overload for launching of the rowing boats. Pre-arrangement for the superstructures installation.

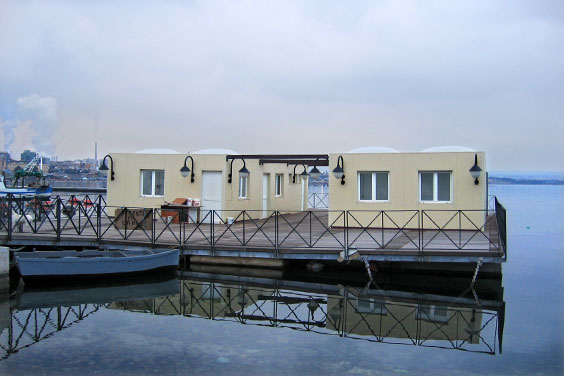

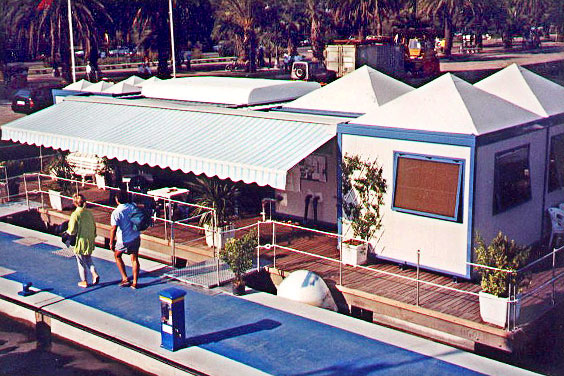

Surface about m² 200. Free board 75 cm, overload 300 kg/m². Anchoring system with chains and deadweights. Positioning of prefabricated boxes to be used as offices and gazebo. Motorized access gangways, length 6 metres.
Surface about m² 170. Free board 65 cm, overload 300 kg/m². Anchoring system with chains and deadweights. Positioning of prefabricated boxes to be used as offices, service and technical equipment for the port.
Surface about m² 180. Free board 75 cm, overload 400 kg/m². Anchoring system with chains and deadweights.
Total surface about m² 100. Free board 50 cm, overload 120 kg/m². Anchoring system with chains and deadweights.
Total surface about m² 300. Free board 75 cm, overload 400 kg/m². Anchoring system with chains and deadweights. Positioning of superstructures.
Surface about m² 40. Free board 75 cm, overload 400 kg/m². Furnishing pre-arrangement. Anchoring system with chains and deadweights.
N 1 platform about 150 m² and No. 1 platform about 200 m². Free board 50 cm. Anchoring system with chains and deadweights.
Surface about m² 250. Free board 70 cm, overload 400 kg/m². Provided with service platform with lower free board. Anchoring system with chains and deadweights.
